GenieClip RST

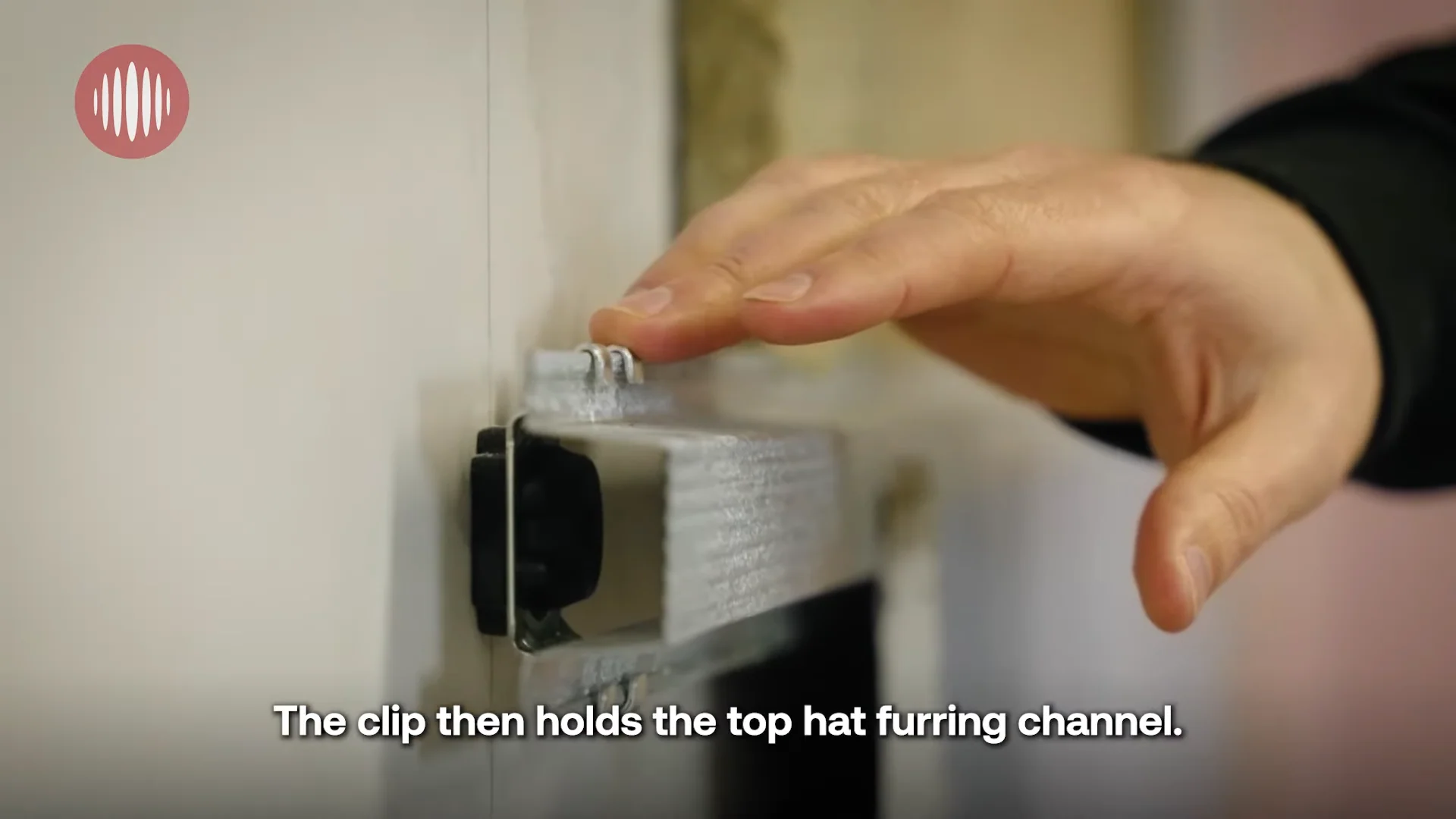

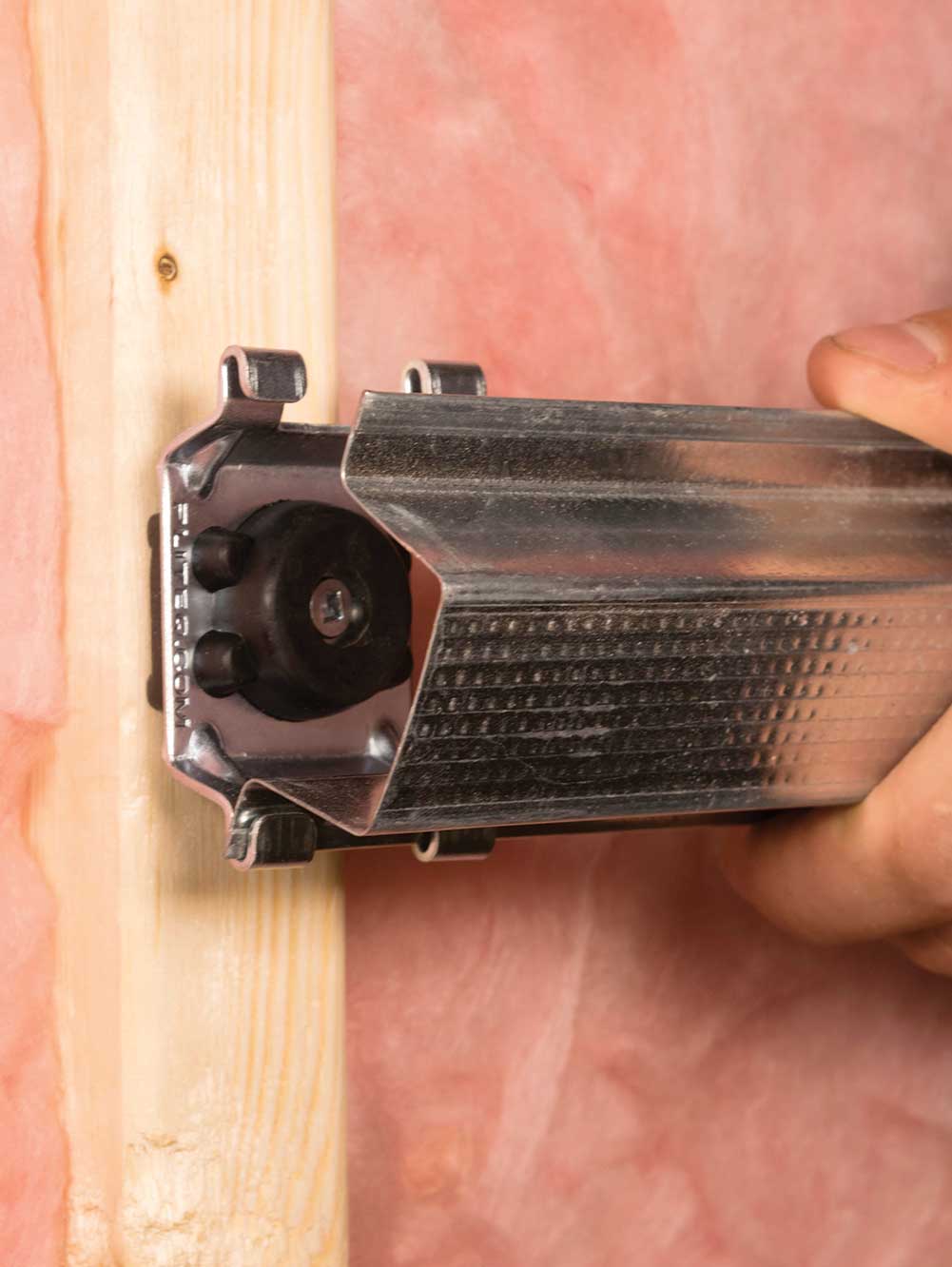

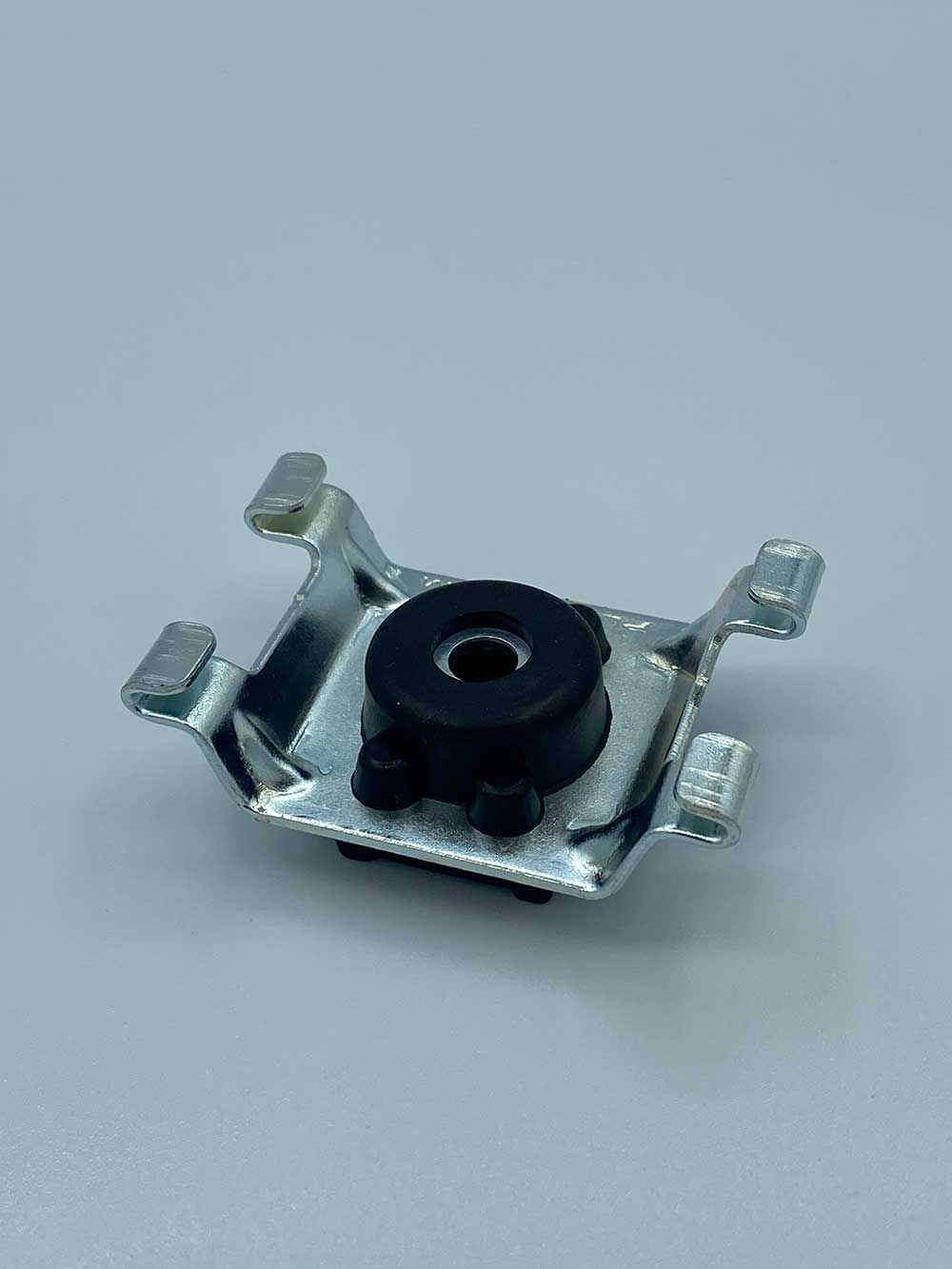

GenieClip RST delivers superior acoustic performance, reducing both airborne and impact sound through wall and floor-ceiling assemblies. The GenieClip RST is a unibody moulded rubber and galvanised steel mount used to attach plasterboard to either wall or floor-ceiling assemblies when used in conjunction with the GenieClip Top Hat Furring Channel-1850mm.

Specification:

• Width 40mm
• Height 24mm
• Length 63mm
• Weight 40 grams
• We recommend 3 Clips per m2 for Walls and 4 Clips per m2 for Ceilings.

Max Spacing on GenieClip TH Furring Channel 1200 mm centres

Benefits:

• Manufactured from recycled products
• Easy and fast to install using Genie Clip Furring Channels.
• Excellent low frequency performance allows for design options in wood construction with or without the use of a screed.
• Concrete slab results with significant broadband sound reduction for floor/ceiling applications
• Performance similar to a double stud wall, but with a substantial reduction in building materials
• Decrease wall thickness and increase valuable floor space Improves Ln,w performance by 8-12 dB in floor/ceiling retrofit assemblies
• Increase Rw by 12-18 dB in wall retrofit assemblies
• Retrofit directly to existing ceiling or wall
• Greater Rw performance than other popular retrofit solutions

Installation Instructions
