The Story
 |
Impact Rating: 49dB L nTw |
 |
Thickness 3mm |
 |
Sheet Dimensions: 1m x 15m |
 |
Area: 15㎡ |
 |
Made from recycled products |

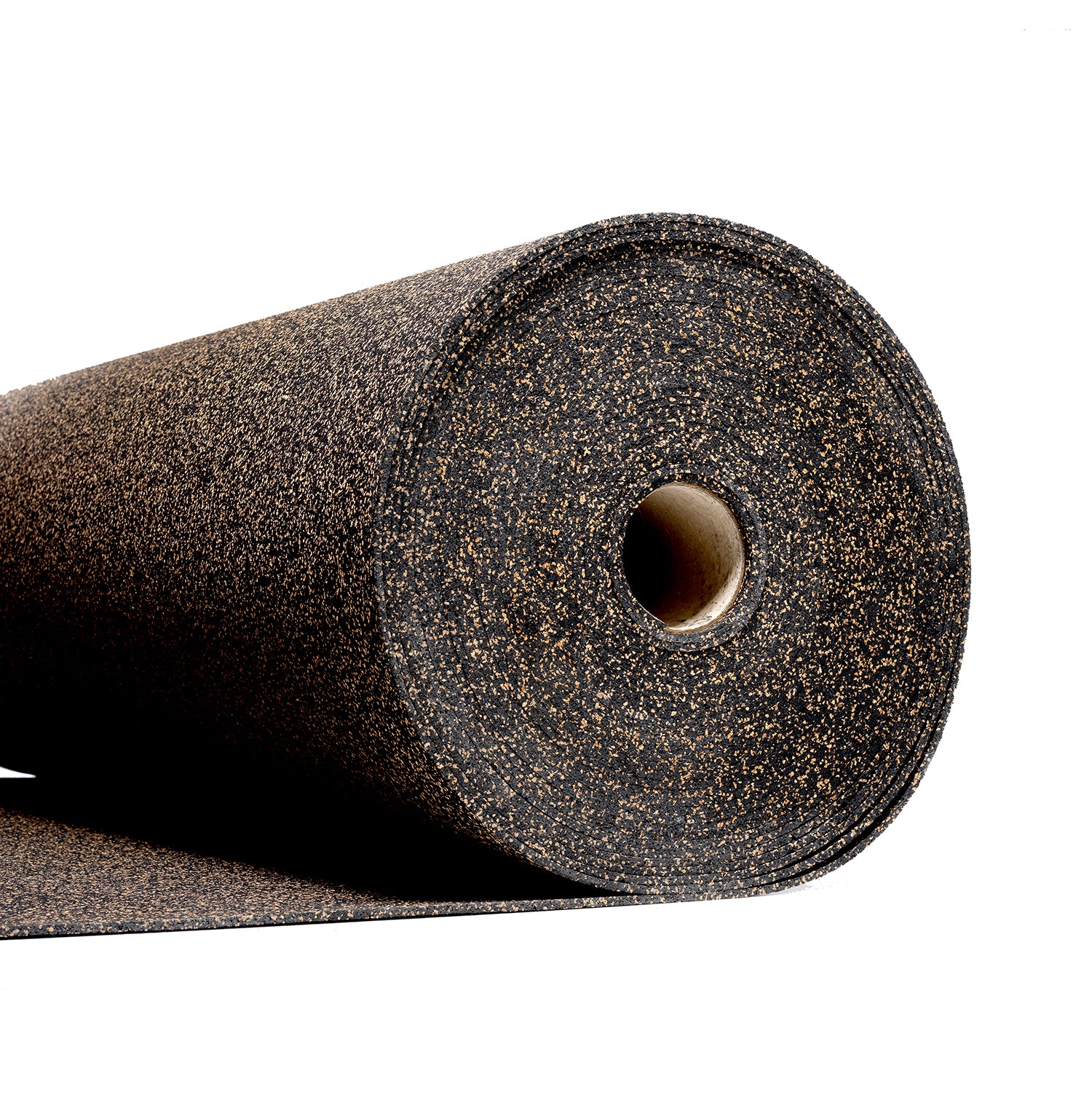

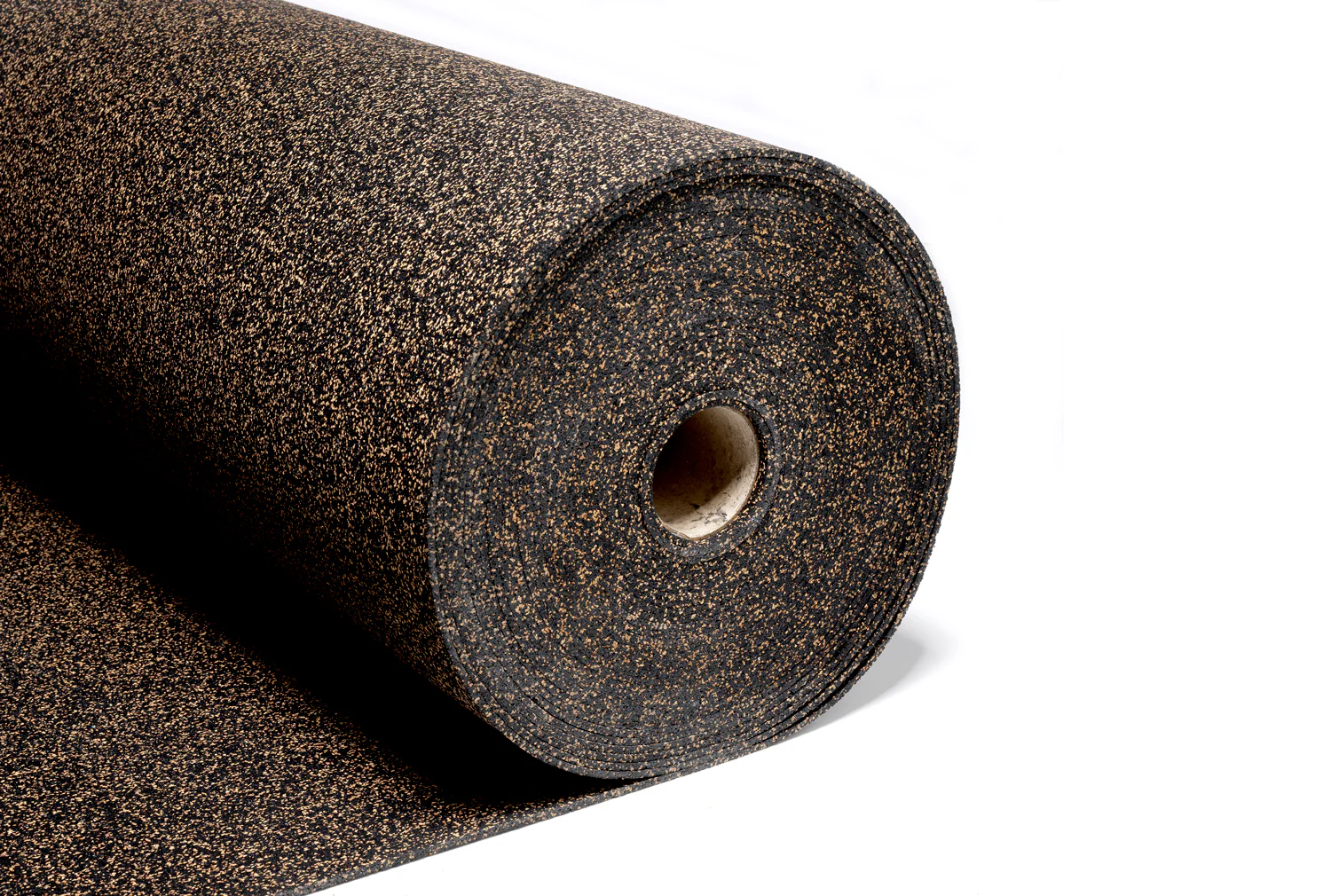

What is db Matting 3?
dB Matting 3 is a shallow overlay treatment for improving impact sound transmission through a party floor. dB Matting 3 is generally installed over a concrete floor to isolate impact transmission from the structure.
dB Matting 3 is an ideal solution to upgrade impact performance through a high mass floor structure.
We have test data for dB Matting on most floor build-ups. Please contact us for this information.
Please consult the dB Matting data sheet for full installation & performance information.
Technical Data
| Characteristic | Value |
|---|---|
| Roll dimensions | 15 m² |
| Thickness | 3 mm |
| Length | 15 m |
| Width | 1 m |
| Density | 750 kg/m³ |
| Tog rating | 0.33 |
| Tensile strength | > 770 kPa |
| Compression | 16% |
| Recovery from compression | > 74% |
| Acoustic performance | 16 dB - 29 dB reduction dependent on floor finish |
Dimensions: 15m x 1m x 3mm (15m² per roll)
To be used with our VS90 Adhesive. 15L covers around 45 sqm using a 3mm notched trowel.
